CUSTOMER
PROJECT NAME
QUANTITY
LOCATIONS

Product

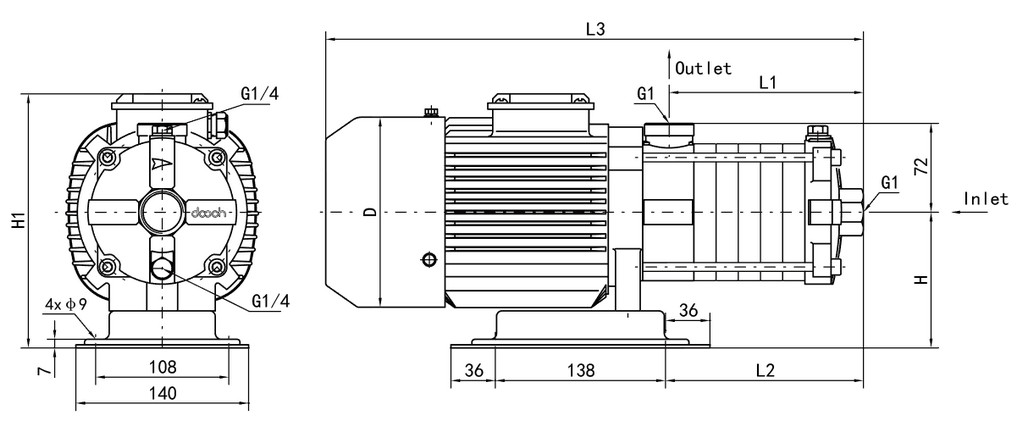

Pump Model	DHF3-3
Pump Type	횡형다단 스테인리스펌프

Pump Performance
Rated Flow	60LPM 3.6m3/Hr
Rated Head	20m 65.62ft
Rated Speed	3500rpm
NPSHre	m
Max Efficiency A	%
Efficiency B	%

Shaft Seal
TYPE	mechanical seal
SIZE	mm
MATERIAL	SIC/Carbon

Liquid
Liquid Transport	Water
Liquid Temperature Range	-15-110℃
Liquid Temperature	20℃
Density	998.2kg/m3
Viscosity	mm2/s
Solid Content	%
Solid Size	mm

Material
Pump body	STS 304
Casing	STS 304
Impeller	STS 304
Shaft	STS 304
BASE

Other
Net Weight	kg
Gross Weight	kg
Transport Volume	0.03m3
PUMP	kg
BASE PLATE	kg

Installation
Maximum ambient temperature	40℃
Maximum operating pressure	10bar
Flange standard
Pump Inlet	G1
Pump Outlet	G1
Pressure Level
COUPLING
COUPLING COVER
IMPELLER
ROTATION VIEWED FROM DRIVER
Driven
End

Motor
MFG.
Motor Model	71M2-2
Motor standard	IEC
ENCLOSURE
Roation Viewed Form Diver	C.C.W
R.OUTPUT
Rated Power	0.55kW
Shaft Power	kW
Motor Pole	2
Rated Speed	3500rpm
Frequency	60HZ
Efficiency	73%
INS CLASS	F
Insulation Class	F
Rated Voltage	φ3x220V/380V ; φ1x220VV
Rated current	φ3x2.4A/1.4A ; φ1x3.65AA
Motor Efficiency Level
Protection grade	IP55
TEMP.RISE	B
Driven
End

ACCESSORIES
COUPL.SET
BASE PLATE
COUNT.FLANGE
PRESS.GUAGE
FUNNEL
SUC.STRAINER
