오배수펌프
Print Date：2024/04/23| CUSTOMER | |
| PROJECT NAME | |
| QUANTITY | |
| LOCATIONS |
| Product | |
| Pump Model | NDS-04B-M(A) |
| Pump Type | 오배수펌프 |
| Pump Performance | |
| Rated Flow | 200LPM 12m3/Hr |
| Rated Head | 7.5m 24.61ft |
| Rated Speed | rpm |
| NPSHre | m |
| Max Efficiency A | % |
| Efficiency B | % |
| Shaft Seal | |
| TYPE | mechanical seal |
| SIZE | mm |
| MATERIAL | SIC/Carbon |
| Liquid | |
| Liquid Transport | |
| Liquid Temperature Range | -40℃ |
| Liquid Temperature | ℃ |
| Density | kg/m3 |
| Viscosity | mm2/s |
| Solid Content | % |
| Solid Size | mm |
| Material | |
| Pump body | GC200 |
| Casing | |
| Impeller | GC200 |
| Shaft | STS304 |
| BASE | |
| Other | |
| Net Weight | kg |
| Gross Weight | kg |
| Transport Volume | m3 |
| PUMP | kg |
| BASE PLATE | kg |
| Installation | |
| Maximum ambient temperature | ℃ |
| Maximum operating pressure | bar |
| Flange standard | |
| Pump Inlet | |
| Pump Outlet | |
| Pressure Level | |
| COUPLING | |
| COUPLING COVER | |
| IMPELLER | |
| ROTATION VIEWED FROM DRIVER | |
| Driven | |
| End | |
| Motor | |
| MFG. | |
| Motor Model | |
| Motor standard | |
| ENCLOSURE | |
| Roation Viewed Form Diver | |
| R.OUTPUT | |
| Rated Power | 0.4kW |
| Shaft Power | kW |
| Motor Pole | 2 |
| Rated Speed | 3500rpm |
| Frequency | 60HZ |
| Efficiency | |
| INS CLASS | |
| Insulation Class | B |
| Rated Voltage | φ1x220VV |
| Rated current | A |
| Motor Efficiency Level | |
| Protection grade | IP68 |
| TEMP.RISE | |
| Driven | |
| End | |
| ACCESSORIES | |
| COUPL.SET | |
| BASE PLATE | |
| COUNT.FLANGE | |
| PRESS.GUAGE | |
| FUNNEL | |
| SUC.STRAINER | |
Performance Curve

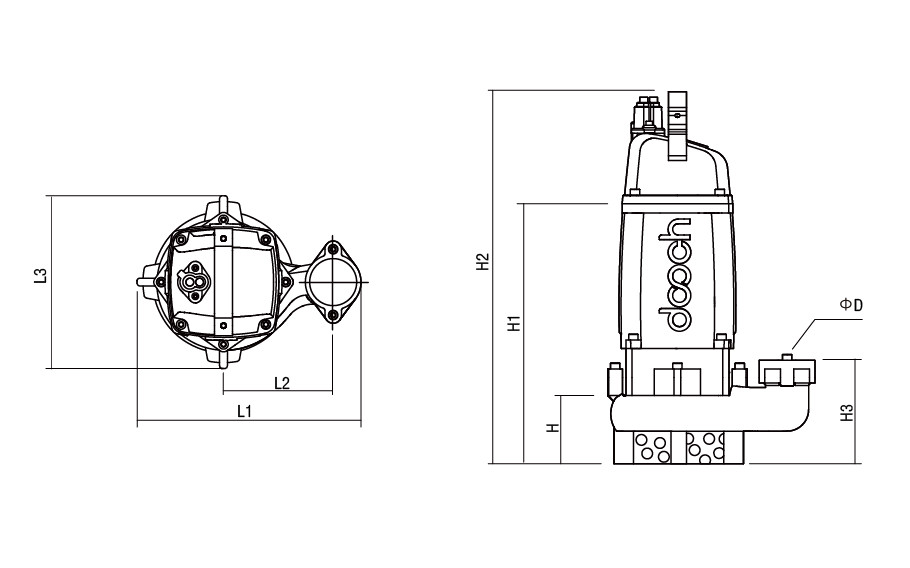

Installation Dimension Drawing
| Installation Parameters | |
| Motor Power | 0.4 kW |
| D | 50 mm |
| H | 65 mm |
| H1 | 320 mm |
| H2 | 475 mm |
| H3 | 130 mm |
| L1 | 265 mm |
| L2 | 145 mm |
| L3 | 184 mm |
