오배수펌프

Print Date:2021/12/04
CUSTOMER
PROJECT NAME
QUANTITY
LOCATIONS
Product
Pump Model NDS-150B
Pump Type 오배수펌프
Pump Performance
Rated Flow 900LPM 54m3/Hr
Rated Head 52.6m 172.57ft
Rated Speed 3550rpm
NPSHre m
Max Efficiency A %
Efficiency B %
Shaft Seal
TYPE mechanical seal
SIZE mm
MATERIAL SIC/Carbon
Liquid
Liquid Transport Water
Liquid Temperature Range -15-110℃
Liquid Temperature 20℃
Density kg/m3
Viscosity mm2/s
Solid Content %
Solid Size mm
Material
Pump body GC200
Casing
Impeller GC200
Shaft 410
BASE
Other
Net Weight kg
Gross Weight kg
Transport Volume m3
PUMP kg
BASE PLATE kg
Installation
Maximum ambient temperature 40℃
Maximum operating pressure 10bar
Flange standard
Pump Inlet
Pump Outlet
Pressure Level
COUPLING
COUPLING COVER
IMPELLER
ROTATION VIEWED FROM DRIVER
Driven
End
Motor
MFG.
Motor Model
Motor standard
ENCLOSURE
Roation Viewed Form Diver
R.OUTPUT
Rated Power 15kW
Shaft Power kW
Motor Pole 2
Rated Speed 3550rpm
Frequency 60HZ
Efficiency
INS CLASS
Insulation Class B
Rated Voltage φ3x380VV
Rated current A
Motor Efficiency Level
Protection grade IP68
TEMP.RISE
Driven
End
ACCESSORIES
COUPL.SET
BASE PLATE
COUNT.FLANGE
PRESS.GUAGE
FUNNEL
SUC.STRAINER
Performance Curve

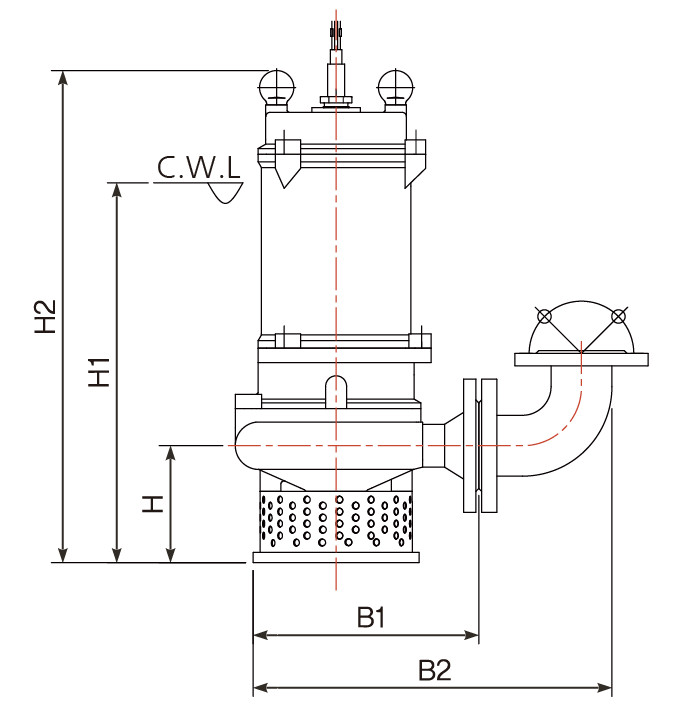

Installation Dimension Drawing
Installation Parameters
Motor Power 15 kW
B1 420 mm
B2 580 mm
H 150 mm
H1 770 mm
H2 1000 mm
